Genel Bakış
RealSense, robotik ve endüstriyel görü uygulamaları için tasarlanmış yeni nesil stereo derinlik kamerası D585 Pro’yu duyurdu. 5. nesil RealSense V5 SoC’u üzerine inşa edilen kamera; geniş alan derinlik algılama, kamera üzerinde AI hızlandırma, IP65 koruma ve yazılım tanımlı algılama özellikleri sunuyor. 2027 Q1’de sevkiyata başlaması planlanıyor.
Donanım
- İşlemci: Özel RealSense V5 SoC — derinlik motoru, ISP, DSP, AI hızlandırıcı ve dört çekirdekli ARM işlemci tek çipte
- Görüntüleme: Çift IR projektör, yüksek çözünürlüklü sensörler, global deklanşör görüntüleme
- IR Filtreleri: Hem iç hem dış mekan kullanımı için optimize
Derinlik Özellikleri
- Görüş Açısı: 120° × 100° — robotik navigasyon için geniş alan
- Derinlik Çözünürlüğü: 1280 × 960’a kadar
- Kare Hızı: Tam çözünürlükte 60 FPS, 90 FPS’e kadar destekli
- Menzil: 10 cm yakın mesafe (tam çözünürlükte), 10 m+ ideal, 20 m+ maksimum
- Bant Genişliği Tasarrufu: Derinlik Sıkıştırma modu ile derinlik akışı bant genişliği %75 azaltılabiliyor — yüksek FPS gerektiren bant genişliği kısıtlı sistemler için
Bağlantı ve Form Faktörü
- Arayüz: USB-C ve GMSL2 — çoklu kamera veya host entegrasyonu için donanım senkronizasyonu destekli
- Koruma: IP65 — toz ve su sıçramasına karşı korumalı
- Boyut: 130 × 40 × 40 mm
Yazılım — Perception Studio (Beta)
RealSense, D585 Pro ile birlikte Perception Studio’yu da duyurdu — RealSense SDK 2.0 ekosisteminde gelişmiş özellikler için beta programı. Lansmanda mevcut:
- Yakın mesafe derinlik iyileştirmeleri (D400 serisi için de geçerli)
- Kamera üstü kişi tespiti
Sonraki sürümlerde planlanıyor:
- Görsel-inersiyal odometri (cuSLAM ile NVIDIA host üzerinde)
- Doluluk ızgara oluşturma (occupancy grid)
- Otomatik kalibrasyon
- Yüz tespiti
Dual RGB Modu
Aynı anda 30 FPS RGB + 30 FPS derinlik akışı — 1280 × 960’a kadar. İki akış kamera üzerinde birleştiriliyor; host CPU yükü yok.
Overview

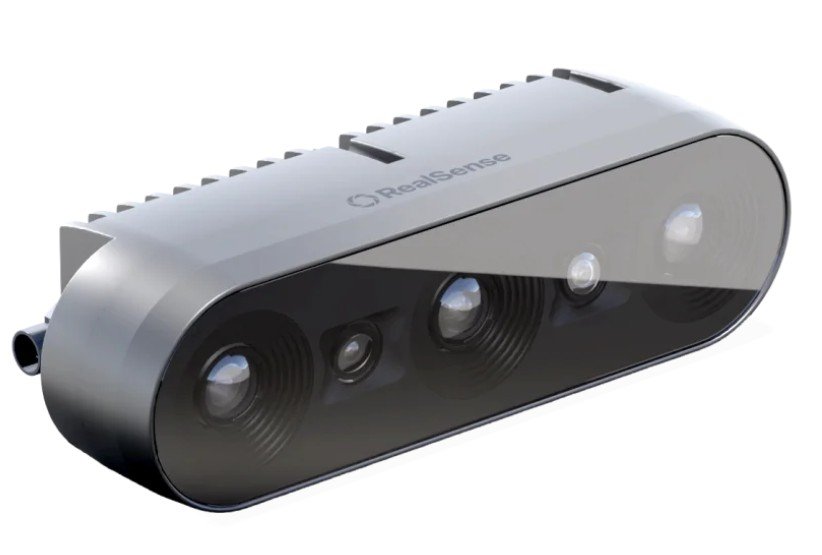

RealSense has announced the D585 Pro, a stereo depth camera for robotics and industrial vision applications built around the company’s Generation 5 RealSense V5 SoC. The camera combines wide-field depth sensing, on-camera AI acceleration, IP65 protection, and software-defined perception features via the RealSense SDK. Shipping is expected in Q1 2027.
Hardware
- Processor: Custom RealSense V5 SoC — depth engine, ISP, DSP, AI accelerator, and quad-core ARM processor on a single chip
- Imaging: Dual IR projectors, high-resolution sensors, global shutter imaging
- IR Filters: Optimized for both indoor and outdoor use
Depth Specifications
- Field of View: 120° × 100° — wide-area coverage for robotics navigation
- Depth Resolution: Up to 1280 × 960
- Frame Rate: 60 FPS at full resolution, up to 90 FPS supported
- Range: 10 cm minimum (full resolution), 10 m+ ideal range, 20 m+ maximum
- Bandwidth Reduction: Depth Compression mode reduces depth stream bandwidth by 75% — intended for bandwidth-limited systems requiring continuous high-frame-rate streaming
Connectivity & Form Factor
- Interface: USB-C and GMSL2 — hardware synchronization support for multi-camera or host-integrated deployments
- Protection: IP65-rated enclosure
- Dimensions: 130 × 40 × 40 mm
Software — Perception Studio (Beta)
RealSense announced Perception Studio alongside the D585 Pro — a beta program for advanced features within the RealSense SDK 2.0 ecosystem. Available at launch:
- Close-range depth improvements (also backported to D400-series cameras)
- On-camera person detection
Planned post-launch features:
- Visual-inertial odometry using cuSLAM on an NVIDIA host
- Occupancy grid generation
- Auto-calibration
- Face detection
Dual RGB Mode
Simultaneous 30 FPS RGB and 30 FPS depth streams at up to 1280 × 960. Both streams are merged on-camera with no host CPU overhead.
