Genel Bakış
LILYGO, Nordic nRF52840 mikrodenetleyicisi tabanlı bileklik formatlı giyilebilir geliştirme kartı T-Impulse Plus’ı duyurdu. Cihaz; LoRa uzun menzilli kablosuz bağlantı, Bluetooth 5, GNSS konumlandırma, IMU, küçük bir OLED ekran, güç yönetimi ve titreşim motoru gibi özellikleri kompakt giyilebilir bir kasada bir araya getiriyor. Fiyatı 45,68 dolar.
Ana İşlemci: Nordic nRF52840
- CPU: 64 MHz ARM Cortex-M4F
- Flash: 1MB dahili
- RAM: 256KB
- Arayüzler: UART, SPI, TWI, PDM, I2S, QSPI
- Kablosuz: Bluetooth 5, Thread, Zigbee
Donanım Bileşenleri
- LoRa: Semtech SX1262 — 400–520 MHz ve 830–945 MHz bant desteği; 868 MHz ve 915 MHz varyantları mevcut
- GNSS: u-blox MIA-M10Q — GPS, GLONASS, BeiDou ve QZSS desteği
- IMU: ICM-20948 — 9 eksenli hareket sensörü (ivmeölçer + jiroskop + manyetometre)
- Ekran: 0,49 inç SSD1315 tabanlı OLED — 64×32 piksel, I2C arayüzü
- Dokunmatik: TTP223 kapasitif dokunmatik düğme
- Titreşim: Dahili titreşim motoru
- Güç Yönetimi: SGM41562 batarya şarj ve güç yönetimi IC — USB şarj 5V/500mA
Düşük Güç Performansı
- Derin uyku: 10–40 μA (mühendislik kartlarında ölçüldü)
- Kapalı mod: <1 μA
Yazılım Desteği
- Arduino IDE — Adafruit nRF52 board support ile
- PlatformIO — nordicnrf52 platformu ile
- GitHub’da hazır örnek projeler: BLE UART, GPS, OLED kontrolü, ICM20948, LoRa PingPong, batarya ölçümü, fabrika test firmware’i
Overview

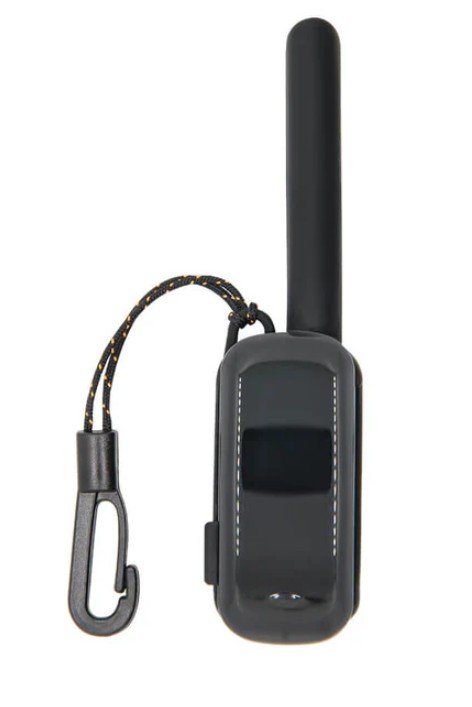

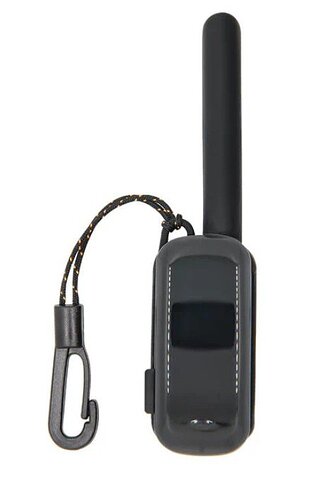

LILYGO has announced the T-Impulse Plus, a wristband-style wearable development board based on the Nordic nRF52840 microcontroller. The device integrates LoRa long-range wireless, Bluetooth 5, GNSS positioning, a 9-axis IMU, a small OLED display, power management, and a vibration motor in a compact wearable enclosure. Priced at $45.68.
Main MCU: Nordic nRF52840
- CPU: 64 MHz ARM Cortex-M4F
- Flash: 1MB onboard
- RAM: 256KB
- Interfaces: UART, SPI, TWI, PDM, I2S, QSPI
- Wireless: Bluetooth 5, Thread, Zigbee
Hardware Components
- LoRa: Semtech SX1262 — 400–520 MHz and 830–945 MHz bands; 868 MHz and 915 MHz variants available
- GNSS: u-blox MIA-M10Q — GPS, GLONASS, BeiDou, and QZSS support
- IMU: ICM-20948 — 9-axis motion sensor (accelerometer + gyroscope + magnetometer)
- Display: 0.49-inch SSD1315-based OLED — 64×32 pixels, I2C interface
- Touch: TTP223 capacitive touch button
- Haptic: Onboard vibration motor
- Power Management: SGM41562 battery charge and power management IC — USB charging at 5V/500mA
Low-Power Performance
- Deep sleep: 10–40 μA (measured on engineering boards)
- Shutdown: <1 μA
Software Support
- Arduino IDE with Adafruit nRF52 board support
- PlatformIO with the nordicnrf52 platform
- Ready-made GitHub examples: BLE UART, GPS, OLED control, ICM20948, LoRa PingPong, battery measurement, factory test firmware
Full article: LILYGO T-Impulse Plus wearable dev board comes with LoRa, GNSS, OLED, and IMU
Product page: T-lmpulse Plus – LILYGO®
GitHub: GitHub - Xinyuan-LilyGO/T-Impulse-Plus · GitHub
