:türkiye: Genel Bakış

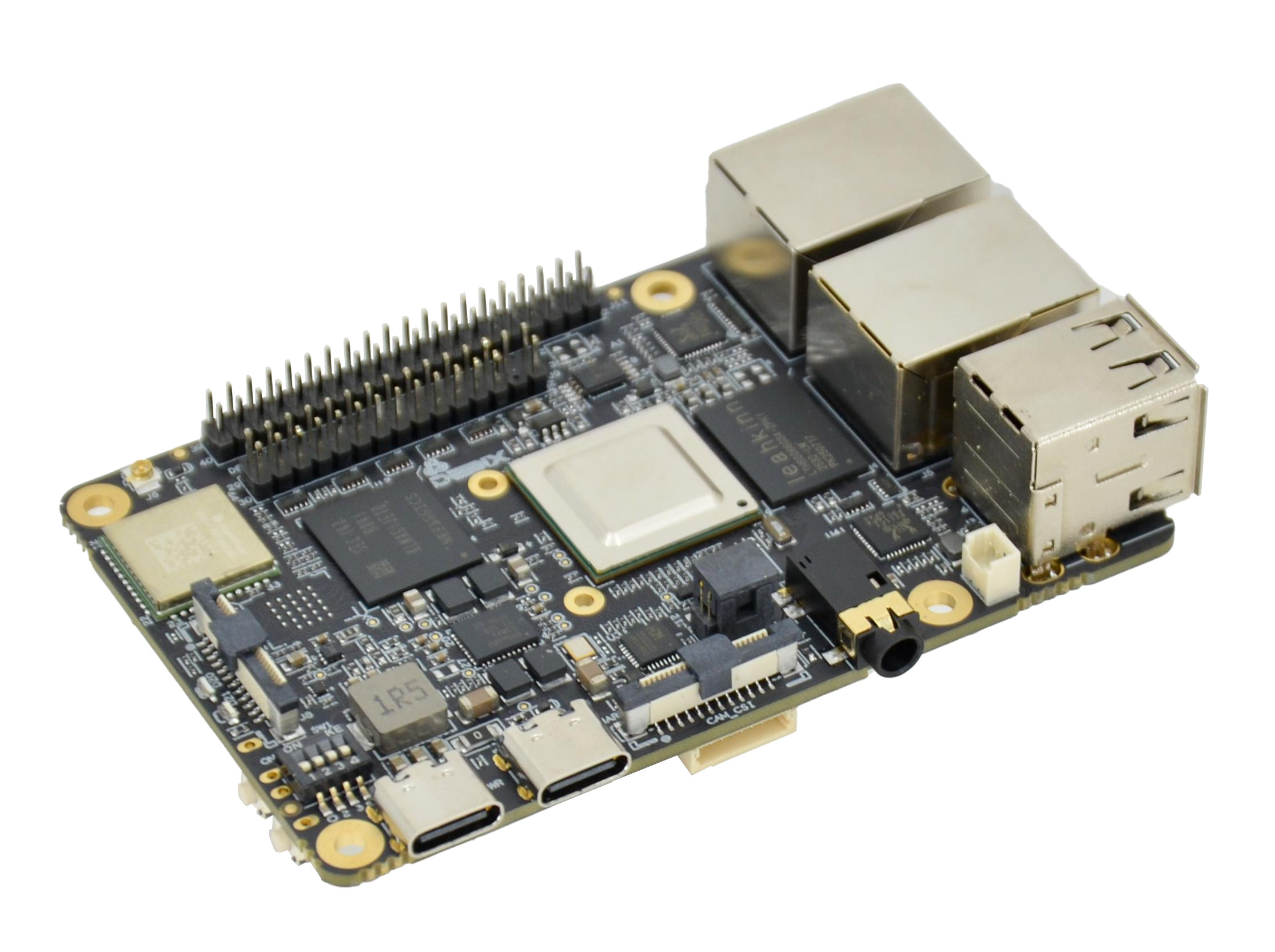

Polyhex Technology, Texas Instruments Sitara AM62P SoC tabanlı kompakt bir endüstriyel geliştirme kartı olan DEBIX T62P-01’i duyurdu. Endüstriyel IoT, robotik, edge computing ve akıllı HMI uygulamalarını hedefleyen kart, 88×59 mm boyutuyla Raspberry Pi form faktörüne yakın bir profil sunuyor. AM62P, T3 Gemstone O1’de kullanılan TI AM67A ile aynı Sitara ailesinden geliyor.

SoC: TI AM62P

  • CPU: Quad-core Arm Cortex-A53 @ 1.4 GHz
  • Gerçek Zamanlı Çekirdekler: 2× Cortex-R5F @ 800 MHz
  • GPU: Imagination IMG BXS-4-64 @ 50 GFLOPS — OpenGL ES 3.2, Vulkan 1.2, OpenCL 1.2
  • NPU: Yok — AI çıkarımı A53 çekirdekleri veya GPU üzerinden yapılıyor

Donanım Özellikleri

  • Bellek: 2GB LPDDR4 standart (4GB, 8GB opsiyonel)
  • Depolama: Opsiyonel eMMC (8–256GB), QSPI NorFlash (4GB’a kadar), MicroSD
  • Ekran: Çift kanal 8-bit LVDS + 4-lane MIPI DSI — 3840×1080’e kadar
  • Kamera: 4-lane MIPI CSI (6Gbps, 5/8/13MP sensör desteği)
  • Ağ: 2× GbE RJ45 (TSN destekli), Wi-Fi 6 + Bluetooth 5.4
  • USB: 2× USB 2.0 Type-A + 2× USB Type-C (biri debug, biri güç)
  • Genişleme: 40-pin header — 4× UART, 2× SPI, 2× I2C, 1× CAN, 2× PWM, 4× GPIO
  • Güvenlik: Donanımsal Secure Boot (RoT), Arm TrustZone TEE, HSM (AES/SHA/PKA/TRNG)
  • Boyut: 88×59×20 mm — 50 gram
  • Sıcaklık: Standart -20°C/+70°C; geniş aralık (opsiyonel) -40°C/+85°C
  • Güç: 5V/3A USB Type-C

Yazılım

Linux 6.12, Android 16 ve Cortex-R5F için FreeRTOS destekleniyor. Debug USB-C portu üç ayrı UART alanına (A53, R5F-MCU, R5F-Wake) eş zamanlı erişim sağlıyor — heterojen çok çekirdekli mimaride debug sürecini kolaylaştırıyor.

:united_kingdom: Overview

Polyhex Technology has announced the DEBIX T62P-01, a compact industrial SBC based on the Texas Instruments Sitara AM62P SoC. Targeting industrial IoT, robotics, edge computing, and smart HMI applications, the board measures 88×59 mm — close to Raspberry Pi form factor. The AM62P belongs to the same TI Sitara family as the AM67A used in T3 Gemstone O1.

SoC: TI AM62P

  • CPU: Quad-core Arm Cortex-A53 @ up to 1.4 GHz
  • Real-Time Cores: 2× Cortex-R5F @ 800 MHz
  • GPU: Imagination IMG BXS-4-64 @ 50 GFLOPS — OpenGL ES 3.2, Vulkan 1.2, OpenCL 1.2
  • NPU: None — AI inference handled by A53 cores or GPU

Hardware Specifications

  • Memory: 2GB LPDDR4 standard (4GB, 8GB optional)
  • Storage: Optional eMMC (8–256GB), QSPI NorFlash (up to 4GB), MicroSD
  • Display: Dual-channel 8-bit LVDS + 4-lane MIPI DSI — up to 3840×1080
  • Camera: 4-lane MIPI CSI (6Gbps bandwidth, 5/8/13MP sensor support)
  • Networking: 2× GbE RJ45 with TSN support, Wi-Fi 6 + Bluetooth 5.4
  • USB: 2× USB 2.0 Type-A + 2× USB Type-C (one debug, one power)
  • Expansion: 40-pin header — 4× UART, 2× SPI, 2× I2C, 1× CAN, 2× PWM, 4× GPIO
  • Security: Hardware Secure Boot (RoT), Arm TrustZone TEE, HSM (AES/SHA/PKA/TRNG)
  • Dimensions: 88×59×20 mm — 50 grams
  • Temperature: Standard -20°C to +70°C; wide-temperature (optional) -40°C to +85°C
  • Power: 5V/3A via USB Type-C

Software

Supports Linux 6.12, Android 16, and FreeRTOS for the Cortex-R5F real-time cores. The dedicated debug USB-C port simultaneously exposes three UART domains (A53, R5F-MCU, R5F-Wake) — simplifying debug workflows on heterogeneous multicore systems.

:open_book: Full article: DEBIX T62P-01 Raspberry Pi-like industrial SBC features TI AM62P SoC, dual GbE with TSN, multi-domain UART - CNX Software
:page_facing_up: Product page: DEBIX T62P-01 - DEBIX
